Levertijd in overleg
100% elektrisch = zero emission
Zeer compact, ideaal in kleine ruimtes
Binnen en buiten gebruik

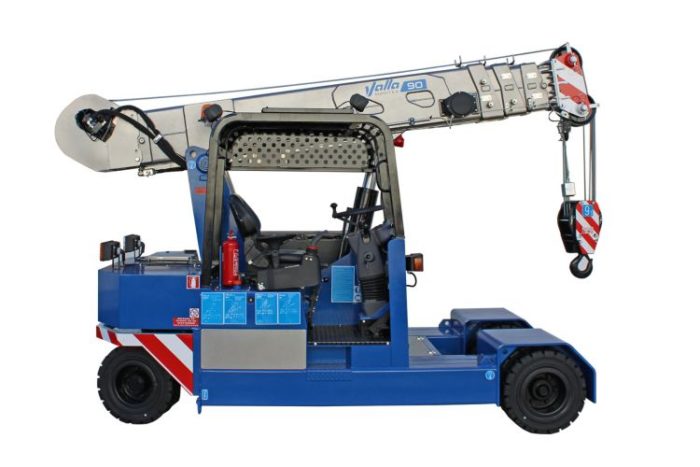

Original Pick & Carry Cranes
| Payload | Max 9.0 Ton |
| Chassis | 6 wheels structure made in high quality steel, with internal counterweights |
| Wheels | Front: n°4 superelastic wheels 23×9 – R10” Rear: n°2 superelastic wheels 23×10 – R12” |
| Traction | Rear traction with differential axle with reduction gear, powered by electric motor AC – 10 kW |
| Hydraulic system | Powered by electric engine DC – 5 kW maximum pressure 190 bar |
| Brakes | N°2 brake shoes on front axle N°2 brake shoes on rear axle |
| Steering | Rear steering with hydraulic cylinder between chassis and traction group |
| Boom | Manufactured in high quality steel, composed by four elements: main boom and three telescopic hydraulic sections |
| Battery | 48V – 700 Ah |
| Controls | By pedals and steering wheel inside the cabin |
| Security (LMI) | Electronic Load Moment Indicator. Display showing lifted load, max allowed load, tilting percentage, operating radius, angle, telescope and light indicators on the operative mode |
| Weight | 9.000 kg |
| Opties | Hydraulic winch, manual Jib, hydraulic Jib, radio remote control, self levelling hydraulic forks, non marking wheels, chain hoist, battery watering system, on board battery charger, carry deck, closed cabin |
| Documenten |
