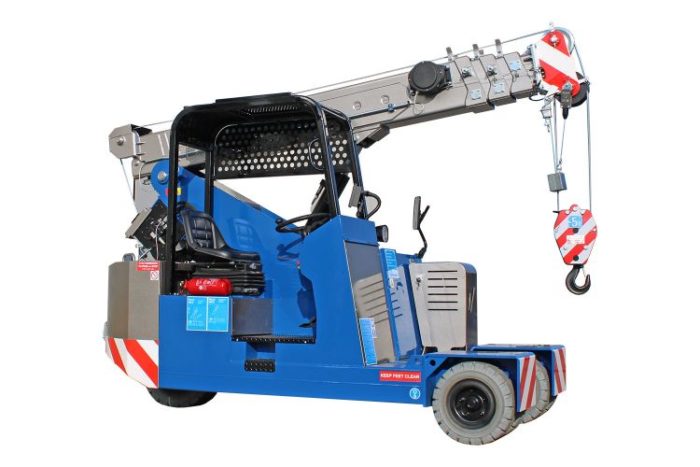

Max 5 Ton

5 wheels structure made in high quality steel, with internal counterweights

Front: n°4 superelastic wheels 16×7 – R8” Rear: n°1 superelastic wheel 23×10 – R12”

Rear traction with electric motor DC 7 kW

Powered by electric motor DC – 5 kW maximum pressure 210 bar

N°1 brake shoe on rear wheel

Rear steering by hydraulic engine installed on fifth wheel

Manufactured in high quality steel, composed by four elements: main boom and three telescopic hydraulic sections

48V – 575 Ah

Traction: By pedals and steering wheel inside the cabin
By proportional distributor with levers inside the cabin

Electronic Load Moment Indicator. Display showing lifted load, max allowed load, tilting percentage, operating radius, angle, telescope and light indicators on the operative mode

5.500 Kg

Hydraulic winch, manual Jib, hydraulic Jib, radio remote control, non marking wheels, chain hoist, battery watering system, on board battery charger, carry deck, closed cabin
