Levertijd in overleg
100% elektrisch = zero emission
Zeer compact, ideaal in kleine ruimtes
Binnen en buiten gebruik

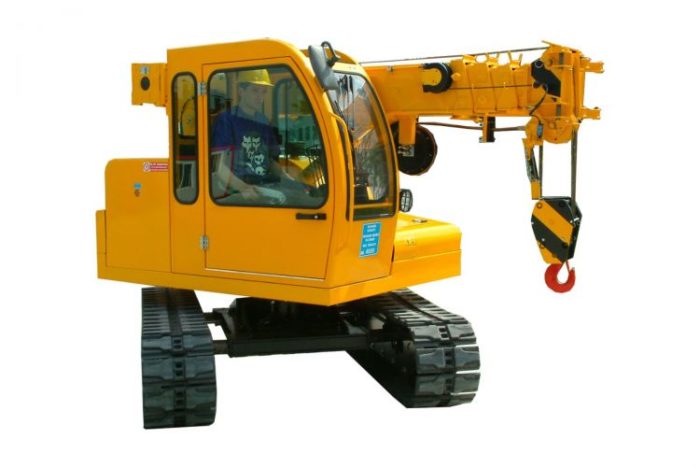

Original Pick & Carry Cranes
| Payload | Max 4.000 kg |
| Chassis | Supporting structure made of steel |
| Engine | 60CV, 4-cylinder, water-cooled diesel |
| Tracked Undercarriage | Hydraulically extendable with rubber tracks, 2 hydraulic traction motors with variable displacement |
| Transmission | Hydrostatic max speed 4 km/h |
| Hydraulic system | Max pressure 280 bar |
| Boom | Made of high quality steel, composed of four elements: base arm and three telescopic sections with sequential hydraulic extension. Two-position tilting head as standard. Continuous 360° turret rotation |
| Controls | Electro-proportional controls controlled by pedals in the cabin for traction and joystick for the aerial part |
| Security (LMI) | Electronic load limiting system with display for load and boom position display |
| Weight | 5.000 kg |
| Opties | Traction / aerial part remote control, hydraulic winch, folding hydraulic jib, non-marking tracks, closed cabin, LPG version |
