Levertijd in overleg
100% elektrisch = zero emission
Zeer compact, ideaal in kleine ruimtes
Binnen en buiten gebruik

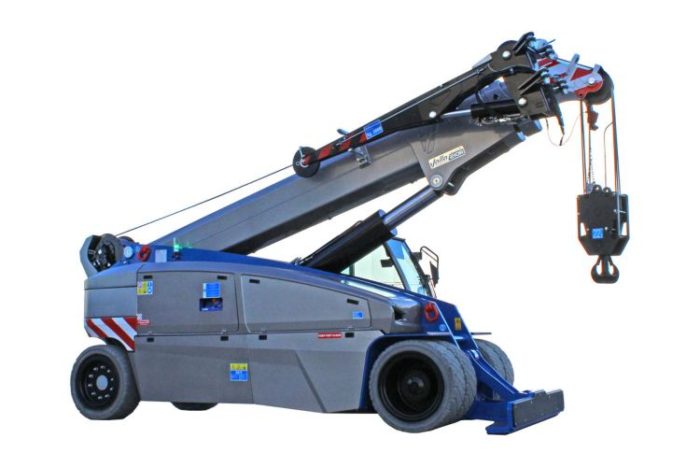

Original Pick & Carry Cranes
| Payload | Max 21 Ton |
| Chassis | Bearing structure made of high quality steel with six wheels |
| Ballast | Nr° 3 removable counterweights of 2,500 kg each |
| Wheels | Nr° 4 front tires 355/50-20″ non-marking SE Nr° 2 rear tires 355/50-20″ non-marking SE |
| Stabilizer protection | Hydraulically flappable front bumper made of steel |
| Traction | Front with 2 motors AC of 7.5kW each |
| Hydraulic system | Powered by 33 kW electric pump AC, work pressure 220 bar |
| Brakes | Hydraulic braking system with front electro hydraulic brakes |
| Steering | Hydraulic rear tilting bridge +/- 90 ° and counter-rotation of the front wheels |
| Boom | Made of high-quality steel, octagonal section consisting of three direct control telescopic elements with double cylinder. Incline corner +65/ -5. Three-position tilting head as standard. |
| Battery | 96V 1.050Ah with automatic topping up and high frequency charger on board |
| Controls | Radio control of traction / aerial part |
| Security (LMI) | Electronic load limiting system with display for load and boom position monitoring |
| Weight | 23.500 kg (hook only equipment) |
| Opties | Left side cabin, hydraulic winch, hydraulic swing jib, self-leveling hydraulic forks |
