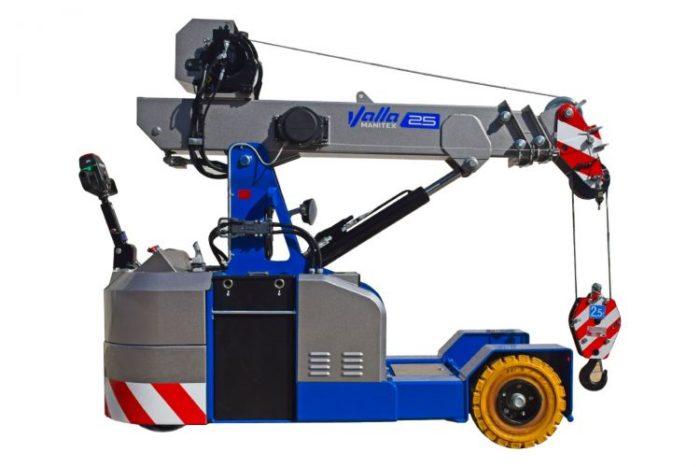

Max 2,5 Ton

3 wheels structure made in high quality steel, with internal counterweights and rear removable counterweight, for maintenance purposes

Nr. 1 rear cushion 305×135 e Nr. 2 front 18×7-R8 superelastic

Rear traction with electric engine AC – 3 kW controlled by inverter, electro magnetic control on disk brake

Powered by electric motor AC – 4 kW (5 kW with hydraulic winch)

On the rear wheel by electric brake

By 180° steering helm. Steering 700W 48V electric motor electronically controlled. Complete with safety device on backward

Manufactured in high quality steel, composed by three elements: main boom and two telescopic hydraulic sections with two positions tilting head cylinder fitted with nylon wear pads. Adjustable wear pads on the sides

48V-200 Ah battery, battery meter on dashboard

Traction: through advance helm
Aerial part: through wire control

Electronic Load Moment Indicator. Display showing lifted load, max allowed load, tilting percentage, operating radius, angle, telescope and light indicators on the operative mode

2.200 kg

Hydraulic winch, manual Jib, radio remote control, non marking wheels, battery watering system, on board battery charger, carry deck, front wheels electro brakes

Brochure
